BFT ATHOS AC A40 AL Swing Gate Motor in UAE

BFT ATHOS AC A40 AL Swing Gate Motor UAE

Left-Hand 230V Swing Gate Opener for Gates up to 400 KG

BFT ATHOS AC A40 AL Swing Gate Motor UAE is the left-hand version of the Italian-made ATHOS AC A40 electromechanical operator, designed for wide swing gate leaves up to 4 metres and up to 400 KG.

The 230V operator uses a 400 mm rod stroke, ALENA SW2 control technology, electronic clutch impact reaction, slowdown and mechanical locking for dependable daily automation.

It is suitable for villas, compounds and commercial entrances across the UAE where the left-hand ATHOS configuration is required.

BFT ATHOS AC A40 AL Swing Gate Motor Features

• Left-hand ATHOS AC A40 operator
• 230V electromechanical swing gate motor
• Maximum gate weight up to 400 KG
• Maximum gate leaf length up to 4 m
• 280W power consumption
• 400 mm useful rod stroke
• Maximum opening angle up to 110°
• ALENA SW2 control unit
• Electronic clutch impact reaction
• Automatic slowdown
• Mechanical locking
• Triangle-key manual release
• Semi-intensive operation
• IP54 protection

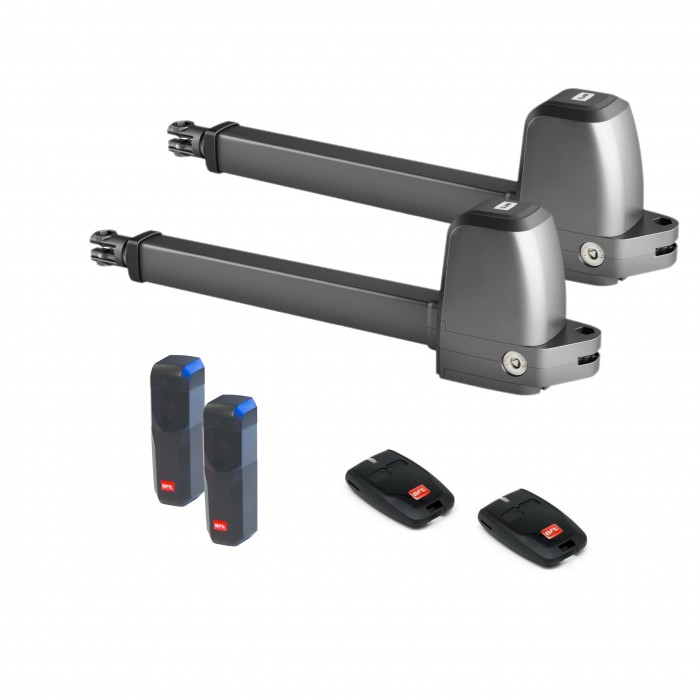

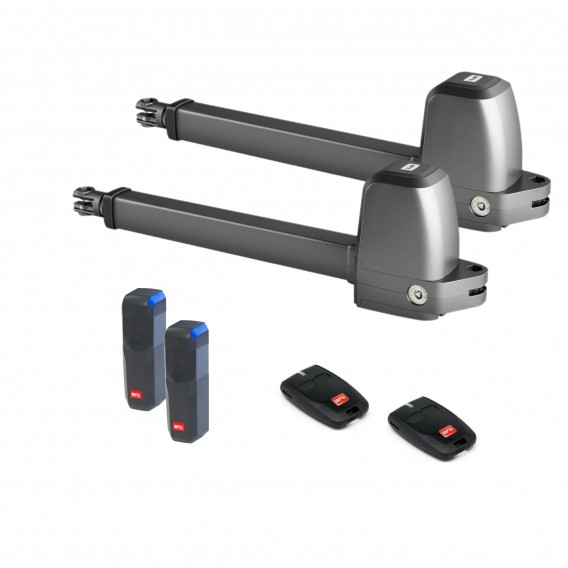

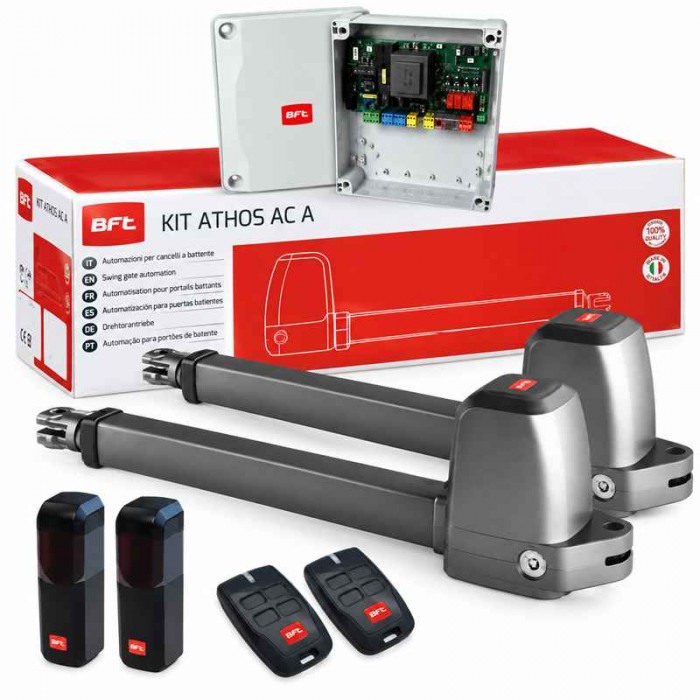

BFT ATHOS AC A40 AL Kit Includes

• 2 x BFT ATHOS AC A40 Swing Gate Operators
• 1 x ALENA SW2 Control Board

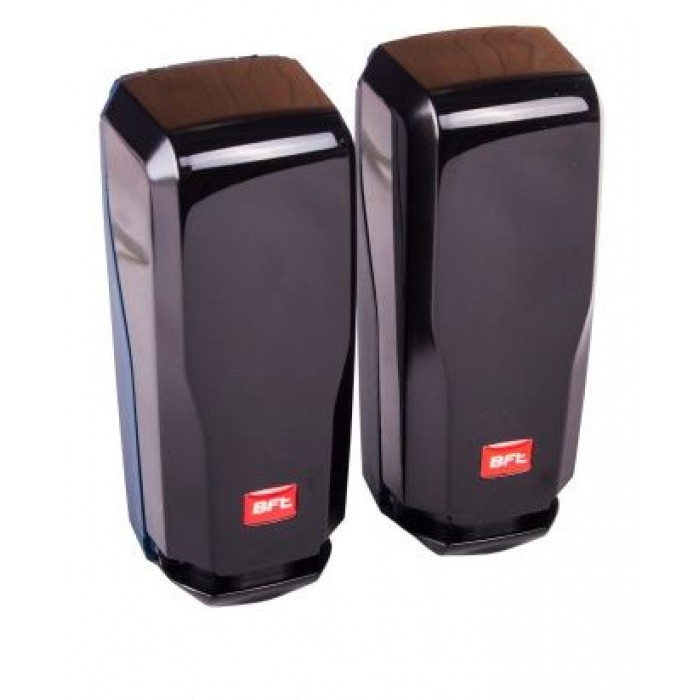

• 1 x Pair of Self-Aligning Photocells

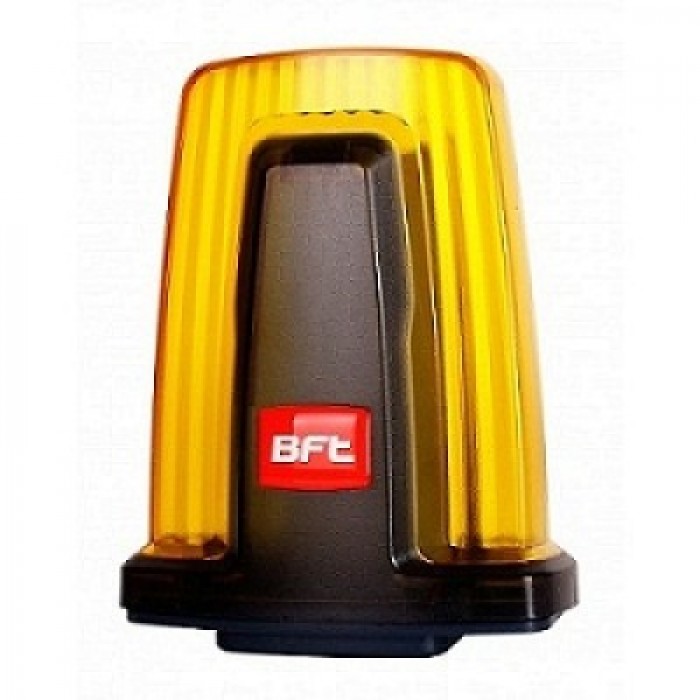

• 1 x Flashing Light with Antenna
• 2 x Remote Controls
• 1 x Push Button
• 2 x Fixing Brackets

Applications

• Residential villa swing gates
• Wide swing gates up to 4 m
• Private compounds
• Commercial entrances
• Double-leaf swing gate automation
• Automatic access control systems

BFT ATHOS AC A40 AL Swing Gate Motor Technical Specifications

• Model: BFT ATHOS AC A40 AL
• Version: Left-Hand Operator
• Product Code: P935116 00002
• Motor Voltage: 230V
• Board Power Supply: 230V
• Power Consumption: 280W
• Maximum Gate Weight: 400 KG
• Maximum Gate Leaf Length: 4 m
• Useful Rod Stroke: 400 mm
• Maximum Opening Angle: 110°
• Cycle Time: 16 Seconds
• Control Unit: ALENA SW2
• Limit Switch Type: Work Time
• Slowdown Function: Yes
• Impact Reaction: Electronic Clutch
• Locking System: Mechanical
• Manual Release: Triangle Key
• Frequency of Use: Semi Intensive
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C

Why Choose BFT ATHOS AC A40 AL in UAE?

• Product-specific BFT automation technology
• Suitable for UAE residential and commercial gate applications
• Reliable outdoor performance when correctly selected and installed
• Professional installation and technical support available across UAE

Frequently Asked Questions

What is BFT ATHOS AC A40 AL Swing Gate Motor used for?

It is designed for automatic swing gate applications such as villas, residential entrances, private compounds and compatible commercial gate systems.

How do I know if this motor is suitable for my gate?

Check the gate leaf length, gate weight, hinge geometry, opening angle and expected daily operating frequency against the technical specifications before installation.

Can this BFT swing gate motor be used in the UAE?

Yes. The operator is suitable for professional gate automation projects in the UAE when installed according to the manufacturer requirements and the site conditions.

Is professional installation available in UAE?

Yes, professional installation and technical support can be provided across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and across UAE.
