BFT BOTTICELLI BT 650 Garage Door Opener in UAE

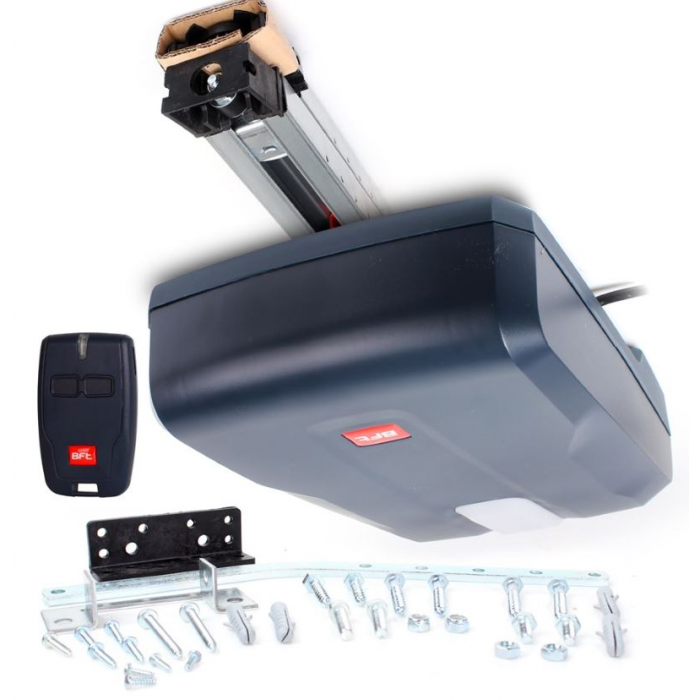

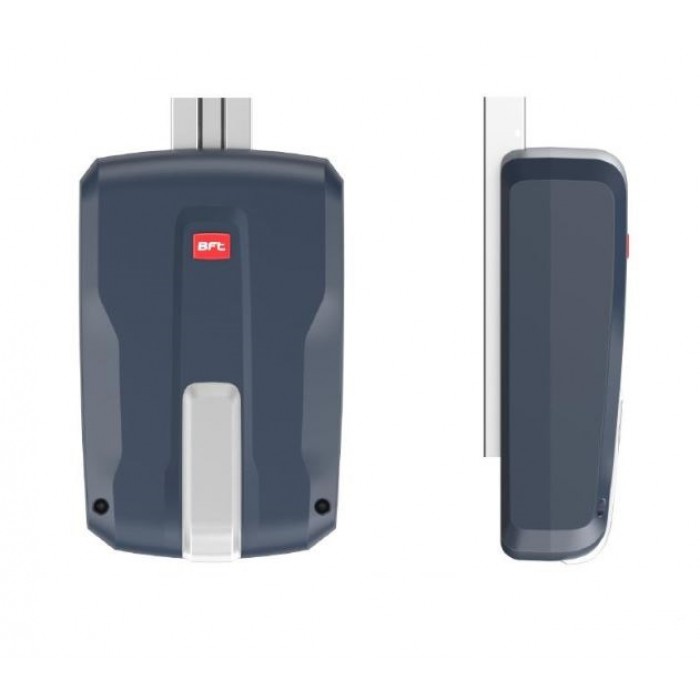

BFT BOTTICELLI BT A 650 Garage Door Motor UAE

Italian 24V Automatic Garage Door Opener for Sectional Doors up to 10 m²

BFT BOTTICELLI BT A 650 Garage Door Motor UAE is an Italian-engineered 24V automatic operator designed for sectional garage doors in villas, residential properties and compatible commercial garage applications across the UAE.

With 650 N tractive force, support for door surfaces up to 10 m² and intensive-use capability, the BOTTICELLI BT A 650 provides fast, controlled and dependable garage door automation.

The VENERE BT A ETD control unit, encoder positioning and BFT D-Track force management help deliver accurate movement, obstacle reaction and smooth slowdown during opening and closing.

With opening speeds up to 210 mm/sec using a chain rail and up to 240 mm/sec using a belt rail, it is suitable for convenient automatic garage access across the UAE.

BFT BOTTICELLI BT A 650 Garage Door Motor Features

• 24V automatic sectional garage door operator
• 650 N tractive force
• Suitable for door surface areas up to 10 m²
• Intensive-use garage automation
• VENERE BT A ETD control unit
• Encoder positioning system
• BFT D-Track force management
• Opening speed up to 210 mm/sec with chain rail
• Opening speed up to 240 mm/sec with belt rail
• Integrated slowdown function
• Mechanical locking
• Manual release by steel cord or cable
• IP20 protection

Applications

• Residential sectional garage doors
• Villa garage automation
• Private home garages
• Automatic residential garage access
• Sectional overhead door automation
• Compatible smart access projects

BFT BOTTICELLI BT A 650 Garage Door Motor Technical Specifications

• Model: BFT BOTTICELLI BT A 650
• Product Code: P915211 00002
• Control Unit: VENERE BT A ETD
• Nominal Voltage: 24V
• Power Consumption: 200W
• Tractive Force and Thrust: 650 N
• Door Surface Area: 10 m²
• Daily Movements at 60°C: 50
• Maximum Opening Speed with Chain Rail: 210 mm/sec

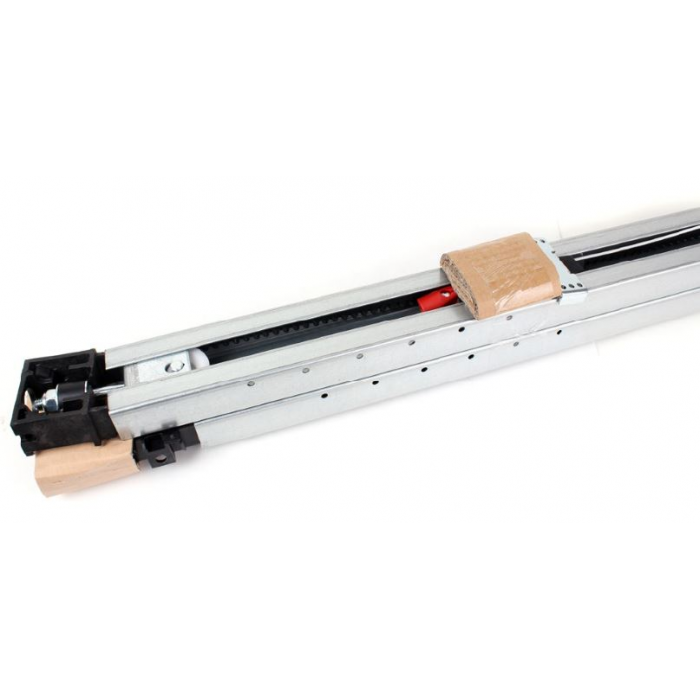

• Maximum Opening Speed with Belt Rail: 240 mm/sec
• Limit Switch Type: Encoder + Mechanical Opening Stop
• Slowdown Function: Yes
• Locking System: Mechanical
• Manual Release: Steel Cord or Cable
• Impact Reaction: D-Track
• Protection Rating: IP20
• Operating Temperature: -20°C to +60°C
• Standby Consumption: 6.7W

Why Choose BFT BOTTICELLI BT A 650 Garage Door Motor?

• Genuine BFT garage automation technology
• Product-specific motor, encoder and safety features
• Suitable for compatible sectional garage doors in UAE
• Professional installation and technical support available across UAE

Frequently Asked Questions

What type of garage door is this motor designed for?

It is designed for compatible sectional garage doors within the model's specified door weight and surface-area limits.

Does this garage door motor have obstacle safety management?

Yes. The operator uses BFT D-Track impact-reaction technology together with encoder-based movement control.

Can it be used for villa garage automation in UAE?

Yes. It is suitable for compatible villa and residential sectional garage doors when correctly selected and professionally installed.

Is professional installation available in UAE?

Yes, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain and across UAE.
