BFT ATHOS AC A25 700 KG Swing Gate Motor in UAE

BFT ATHOS AC A25 Swing Gate Motor UAE

Italian 230V Swing Gate Opener for Gates up to 700 KG

BFT ATHOS AC A25 Swing Gate Motor UAE is a robust Italian-made 230V electromechanical operator designed for residential and commercial swing gate automation.

With support for gate leaves up to 2.5 metres and specified gate weights up to 700 KG, the ATHOS AC A25 combines a 300 mm rod stroke, electronic clutch safety management, slowdown and mechanical locking.

Its semi-intensive design makes it suitable for villas, residential properties, parking entrances and commercial gates throughout the UAE.

BFT ATHOS AC A25 Swing Gate Motor Features

• 230V electromechanical swing gate motor
• Maximum gate weight up to 700 KG
• Maximum gate leaf length up to 2.5 m
• ALENA SW2 control technology
• Electronic clutch impact reaction
• Slowdown functionality
• Mechanical locking
• 300 mm useful rod stroke
• Maximum opening angle up to 110°
• Triangle-key manual release
• IP54 protection
• Semi-intensive operation
• Italian-made automation

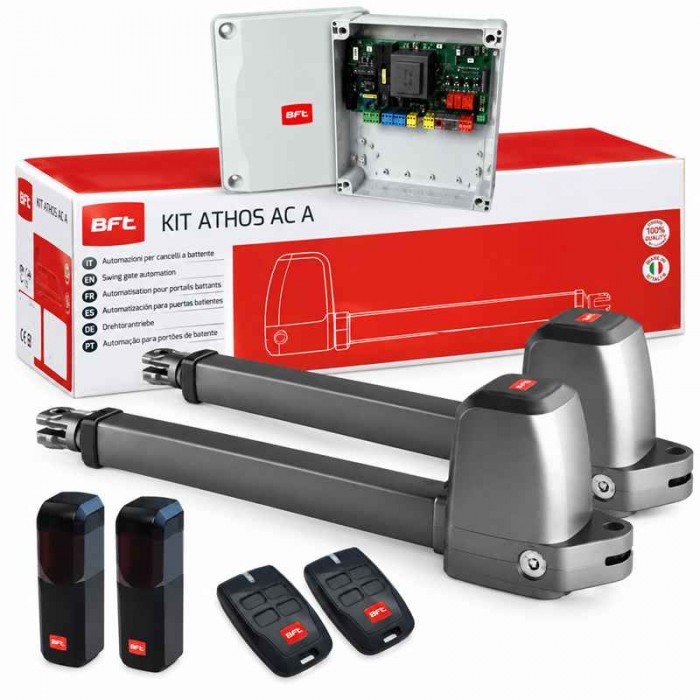

BFT ATHOS AC A25 Kit Includes

• 2 x BFT ATHOS AC A25 Swing Gate Motors
• 1 x ALENA SW2 Control Board
• 1 x Pair of Photocells
• 1 x Flashing Light
• 2 x BFT Remote Controls
• 1 x Push Button
• 2 x Fixing Brackets

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Parking entrance gates
• Private compounds
• Automatic access control systems
• Double swing gate automation

BFT ATHOS AC A25 Swing Gate Motor Technical Specifications

• Model: BFT ATHOS AC A25
• Product Code: P935108 00002
• Motor Voltage: 230V
• Board Power Supply: 230V
• Power Consumption: 280W
• Maximum Gate Weight: 700 KG
• Maximum Gate Leaf Length: 2.5 m
• Useful Rod Stroke: 300 mm
• Maximum Opening Angle: 110°
• Cycle Time: 14 Seconds
• Limit Switch Type: Work Time
• Control Unit: ALENA SW2
• Slowdown Function: Yes
• Locking System: Mechanical
• Impact Reaction: Electronic Clutch
• Frequency of Use: Semi Intensive
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C

Why Choose BFT ATHOS AC A25 in UAE?

• Product-specific BFT automation technology
• Suitable for UAE residential and commercial gate applications
• Reliable outdoor performance when correctly selected and installed
• Professional installation and technical support available across UAE

Frequently Asked Questions

What is BFT ATHOS AC A25 Swing Gate Motor used for?

It is designed for automatic swing gate applications such as villas, residential entrances, private compounds and compatible commercial gate systems.

How do I know if this motor is suitable for my gate?

Check the gate leaf length, gate weight, hinge geometry, opening angle and expected daily operating frequency against the technical specifications before installation.

Can this BFT swing gate motor be used in the UAE?

Yes. The operator is suitable for professional gate automation projects in the UAE when installed according to the manufacturer requirements and the site conditions.

Is professional installation available in UAE?

Yes, professional installation and technical support can be provided across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and across UAE.
