Vehicle Loop Detector Cable UAE
Vehicle Loop Detector Cable – Product Introduction
Vehicle Loop Detector Cable forms the sensing loop used by an inductive vehicle detector. Installed within a suitable road or driveway groove, it provides the electrical loop whose inductance changes when a vehicle occupies the detection area. The connected detector then produces a signal for a compatible gate, barrier or access-control system.

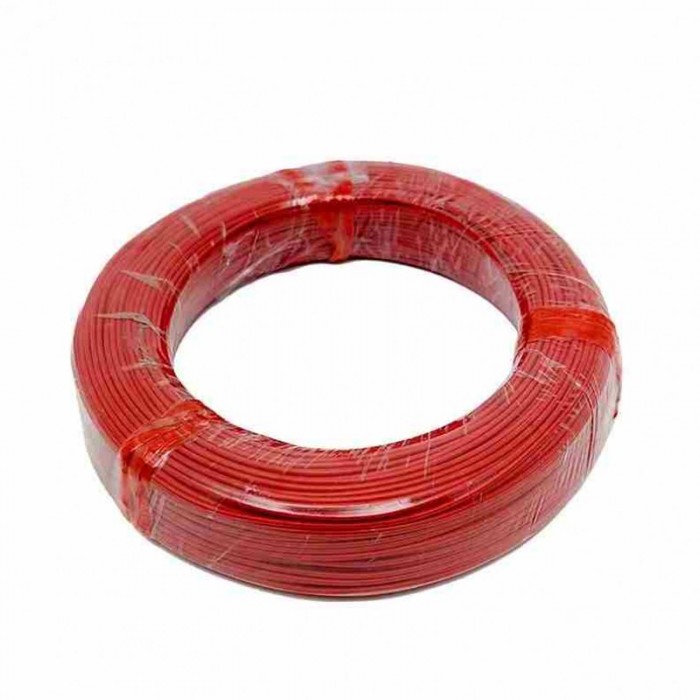

This red cable is specified with a tinned copper conductor and insulation intended for buried road-loop applications. The published properties include resistance to ageing, corrosion, acids and alkalis, together with high temperature resistance. A numerical temperature limit, cable cross-section and supplied roll length are not stated, so confirm these details when ordering.
Use it when constructing a new vehicle detection loop or replacing damaged loop wiring. Cable selection, loop layout and detector settings all affect performance. The cable alone does not detect vehicles or operate a barrier: a compatible electronic loop detector and properly configured controller are also required.
Key Features
- Professional inductive vehicle loop cable
- Tinned copper conductor
- Suitable for underground road installation
- High temperature resistance
- Aging resistant insulation
- Corrosion resistant construction
- Acid and alkali resistance
- Reliable vehicle detection signal transmission
- Suitable for automatic parking barriers
- Suitable for sliding and swing gates
- Compatible with vehicle access control systems
- Suitable for commercial and industrial installations
Technical Specifications
- Product Type: Vehicle Loop Detector Cable
- Application: Inductive Vehicle Detection
- Conductor Material: Tinned Copper Wire
- Cable Colour: Red
- Installation Type: Road / Driveway Loop Installation
- Recommended Groove Width: 3–5 mm
- Recommended Groove Depth: 40–50 mm
- Recommended Loop Inductance: 100μH – 300μH
- Temperature Resistance: High
- Corrosion Resistance: Yes
- Acid & Alkali Resistance: Yes
Planning the Vehicle Detection Area
Position the loop according to its intended task: approach detection, free exit, presence monitoring, vehicle counting or a supported protective function. The loop must cover the appropriate vehicle path without relying on a layout selected only for installation convenience.
The listed target inductance is approximately 100–300 μH. Verify the connected detector’s accepted range and calculate the cable turns for the actual perimeter and feeder route. Available roll length and conductor size should be checked against the installation design.
Loop Turns – Reference Guidance
- Below 3 m circumference: adjust turns to achieve approximately 100–300 μH.
- 3–6 m circumference: 5–6 turns.
- 6–10 m circumference: 4–5 turns.
- 10–25 m circumference: 3 turns.
- Above 25 m circumference: 2 turns.
These are reference guidelines, not a substitute for measuring the completed loop or following the selected detector instructions. Ground conditions, cable route and actual loop geometry can affect the result.
Road Groove and Installation
The reference installation guidance gives a groove approximately 3–5 mm wide and 40–50 mm deep. Confirm that cutting is suitable for the driveway construction and that the intended route is clear of existing services. Clean and dry the groove before laying the cable.
Mark the loop, prepare the groove, install the required turns and route the feeder toward the detector cabinet. Check the loop resistance and inductance before sealing. Use appropriate road-loop sealant, connect the detector and then set sensitivity and frequency for the site. Complete vehicle and gate/barrier testing before normal use.
Compatible Detector Applications
The reference lists PD-132 230 V, 24 V and 12 V versions, PD-232, Nortech PD132 Enhanced, BFT RME1 BT and LD202 as compatible detector families, subject to their individual loop requirements. Other inductive detectors may also be suitable after checking cable and inductance specifications.
The loop itself is separate from the detector’s power supply. Select the electronic detector for the available supply voltage and controller input; do not apply the detector supply rating directly to the road cable as an installation instruction.
Where Loop Cable Is Used
Typical installations include villa driveways, residential compounds, office car parks, warehouse gates, factories, security checkpoints and controlled industrial entrances. A matched detector can use the loop for supported free-exit, presence, RFID access or vehicle-counting functions.
Good sealing and protected cable routing help preserve insulation and stable detection. If a system becomes intermittent, inspect the loop and connections as well as the detector settings; replacing electronics alone may not resolve damaged road-loop wiring.
Package and Ordering Information
This listing is for loop cable. Confirm the supplied length and conductor size before ordering. The electronic detector, sealant, road cutting and installation service are separate unless included in your quotation.
Supply and Installation Support in the UAE
BFT Automation UAE can assist with product selection and enquiries for Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Send the existing equipment model and installation details so compatibility and any additional parts can be checked.
Request a quotation for delivery, fitting, wiring and commissioning as applicable. Service scope, availability and warranty terms should be confirmed for your order; accessory supply alone does not automatically include installation.
Frequently Asked Questions
Does this cable work without a detector?
No. It must be connected to a compatible inductive loop detector.
What is the conductor material?
Tinned copper; the listed cable colour is red.
How many turns are required?
The number depends on the loop circumference and required inductance. Use the guidance above, then measure and confirm against the detector instructions.
What length is supplied?
The reference does not state a roll length. Confirm the supplied quantity before purchase.
Can it be used for a barrier safety loop?
It can form a presence loop for a supported protective input when the complete system is correctly designed, wired and tested.
