Smart WiFi Garage Door Opener Controller UAE
Smart WiFi Garage Door Opener Controller – Product Introduction
Smart WiFi Garage Door Opener Controller adds smartphone operation to a compatible existing garage door motor. It connects to a suitable wall-button or external trigger input and communicates through a 2.4 GHz WiFi network using Tuya Smart or Smart Life. The existing opener continues to provide the motor drive and door-control functions.
This compact controller uses a DC 5 V, 1 A USB power input and an ABS + PC housing. A separate door-position sensor with an approximately 5 m cable is included. The sensor allows the system to detect the door position after it has been installed and configured correctly.
The controller supports compatible Amazon Alexa and Google Assistant integrations without an additional smart-home hub. Available voice commands depend on the platform, account setup and security settings. It is an accessory controller, not a complete garage motor or a guarantee of compatibility with every BFT opener.
Key Features
- Control compatible garage doors from a smartphone
- WiFi smart garage door controller
- Tuya Smart app support
- Smart Life app support
- Amazon Alexa compatible
- Google Assistant compatible
- No additional smart home hub required
- Garage door position sensor included
- Approximately 5 metre sensor cable
- Compact controller design
- Works with compatible garage door push-button inputs
- Suitable for residential garage automation
Technical Specifications
- Product Type: Smart WiFi Garage Door Controller
- App: Tuya Smart / Smart Life
- WiFi: 2.4 GHz WiFi
- Input Power: DC 5V 1A
- Interface: USB
- Voice Control: Amazon Alexa / Google Assistant
- Sensor Cable Length: Approximately 5 m
- Material: ABS + PC
- Application: Compatible Automatic Garage Door Openers
Smartphone Control with Tuya Smart and Smart Life
After wiring and pairing, the selected application provides the supported garage-control functions from a smartphone. Add the controller to the correct account and give it a clear name so it can be recognised among other smart-home devices.
Use a compatible 2.4 GHz WiFi network during setup and verify coverage at the installed controller position. The source specifies 2.4 GHz operation; it does not claim 5 GHz WiFi support. Connectivity and application availability affect access to network-dependent features.
Check the Existing Garage Motor First
The garage opener must provide a suitable external trigger or wall-button input. Check the exact control-board terminals and motor instructions before connection. A proprietary digital wall-console connection should not be assumed compatible simply because it has two wires.
This controller sends a command to a compatible input. It does not replace the motor, receiver electronics, travel limits or existing obstruction protection. Retain the safety functions specified for the door installation and test them after the upgrade.
Door Position Sensor and Cable
The included sensor is installed across the door and fixed frame as appropriate to the door arrangement. Its approximately 5 m cable connects it to the controller. Correct alignment and secure cable routing are necessary for reliable position reporting.
Check the required cable route before ordering. Keep the sensor cable away from moving parts and confirm that it will not be stretched, trapped or damaged throughout door travel. Test position reporting in both fully open and fully closed states during commissioning.
Alexa and Google Assistant Integration
Supported voice-assistant connections can bring the garage accessory into a compatible smart-home setup. Link the relevant service using the application’s supported process and review the account security settings.
The available commands and any security verification depend on the selected platform and its configuration. Do not assume that every voice assistant offers identical opening and closing controls. Test the supported actions after pairing.
Installation and Setup
Confirm compatibility and USB power requirements, mount the controller and sensor, and make the approved trigger connection. Pair the device using Tuya Smart or Smart Life on a compatible 2.4 GHz network. Follow the instructions supplied with the actual controller for pairing and reset procedures.
Once configured, test app operation, door position feedback and the existing wall control or remote where applicable. Check the door through complete cycles and confirm that the installation remains safe before enabling routine remote operation.
Suitable Garage Applications
Typical uses include compatible villa garages, residential sectional doors, overhead doors and selected commercial garage installations. The decisive factor is the existing opener interface and installation environment, rather than the door style alone.
This upgrade is useful when the existing motor works correctly and the goal is to add app access. If the motor lacks a compatible input or the door has unresolved mechanical problems, those issues should be addressed before selecting the accessory.

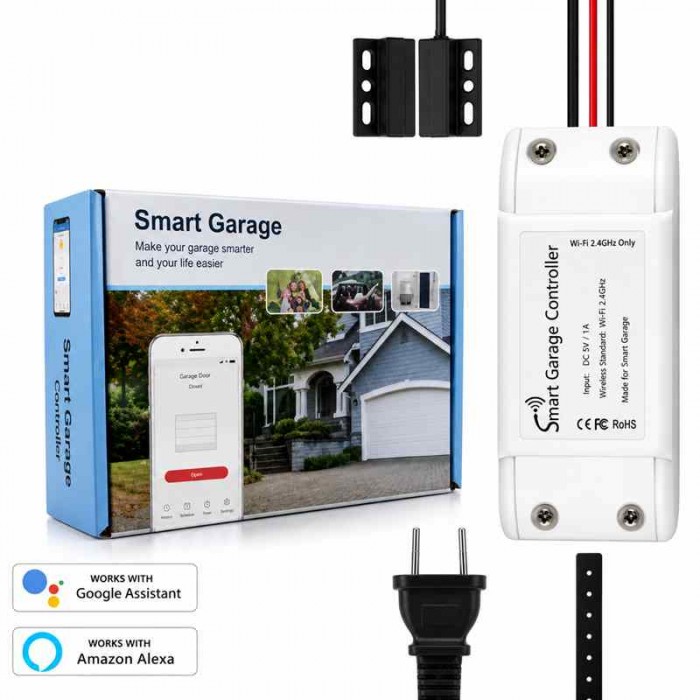

Package and Ordering Information
- Smart WiFi garage controller.
- Garage door position sensor.
- Approximately 5 m sensor cable.
Confirm USB power-adapter inclusion and any additional mounting accessories when ordering. The garage motor and professional installation are separate unless included in the quotation.
Supply and Installation Support in the UAE
BFT Automation UAE can assist with product selection and enquiries for Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Send the existing equipment model and installation details so compatibility and any additional parts can be checked.
Request a quotation for delivery, fitting, wiring and commissioning as applicable. Service scope, availability and warranty terms should be confirmed for your order; accessory supply alone does not automatically include installation.
Frequently Asked Questions
Does it replace my garage door motor?
No. It adds app control to a compatible existing opener.
Which apps are supported?
Tuya Smart and Smart Life.
Does it work on 5 GHz WiFi?
The specified network is 2.4 GHz WiFi; 5 GHz support is not stated.
Is a smart-home hub required?
No additional smart-home hub is specified as necessary.
Can I use Alexa or Google Assistant?
Compatible integration is supported; commands and security checks depend on the platform and account setup.
Is the door sensor included?
Yes, with an approximately 5 m cable.
