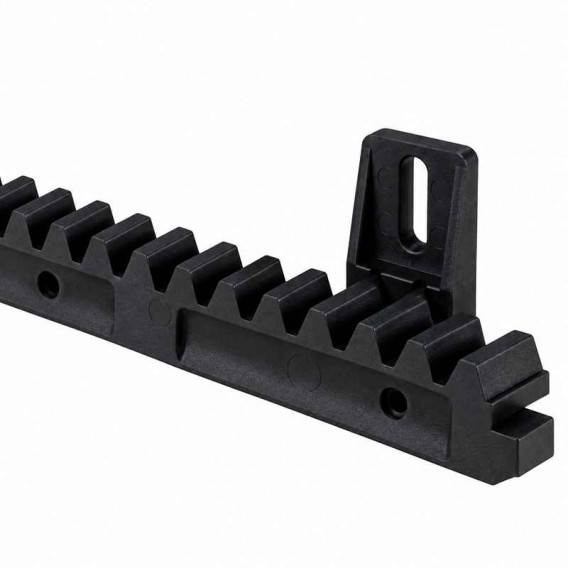

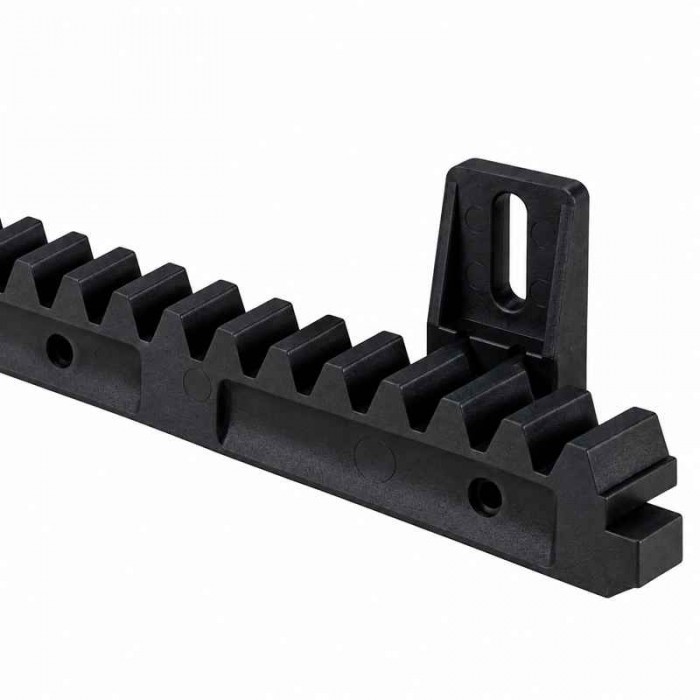

BFT CP D221073 Nylon Gear Rack 1M – Product Introduction
BFT CP D221073 Nylon Gear Rack 1M is a nylon/plastic drive rack for a compatible automatic sliding gate. The teeth engage the motor pinion so that its rotation moves the gate along its travel. Correctly matched rack sections form a continuous drive connection through the opening and closing cycle.
Each section is 1 metre long, with a 22 × 22 mm cross-section and a Module 4 tooth profile. The CP model, product code D221073, is specified for gates up to 600 kg and uses screw-fitted adjustable mounting slots.
This accessory is suitable for new automation work or replacement of worn or damaged rack sections. Selecting by length alone is insufficient: the pinion profile, rack dimensions, mounting arrangement and gate operating requirements must also match.
Key Features
- Original BFT sliding gate gear rack
- Model: CP
- Product code: D221073
- 1 metre rack length
- Module 4 gear profile
- 22 × 22 mm cross-section
- Plastic / nylon construction
- Maximum gate load up to 600 KG
- Adjustable slotted mounting system
- Screw-fitted installation
- Designed for automatic sliding gates
- Smooth engagement with compatible gate motor pinions
- Multiple 1 metre sections can be installed for longer gates
Technical Specifications
- Brand: BFT
- Model: CP
- Product Code: D221073
- Product Type: Sliding Gate Nylon Gear Rack
- Length: 1 Metre
- Gear Module: Module 4
- Cross Section: 22 × 22 mm
- Material: Plastic / Nylon
- Maximum Gate Load: Up to 600 KG
- Mounting: Screw-Fitted Adjustable Slots
- Application: Automatic Sliding Gates
Rack and Pinion Operation
The motor pinion drives the teeth of the rack fixed along the sliding gate. Alignment must remain consistent as the gate moves, including at the joint between neighbouring sections. Uneven tooth spacing or a misaligned joint can interrupt otherwise smooth travel.
Before fitting a new rack, check that the gate moves freely on its own running gear. Follow the operator instructions for rack clearance and mounting; the rack and motor pinion should not be used to correct a binding gate or unsuitable support arrangement.
Dimensions and Tooth Profile
The specified section dimensions are 22 × 22 mm cross-section, 1 m long. This version uses Module 4; match it to the pinion specified for the exact operator.
A similar overall shape does not ensure interchangeability. Compare the existing rack, motor pinion and fixing layout when replacing a section. On a longer gate, use compatible sections throughout the driven length and maintain correct engagement across every joint.
Material and Application
Nylon/plastic construction provides relatively quiet engagement and is suited to residential or light commercial gates within the stated 600 kg rack limit. The motor must also be suitable for the actual gate; the rack rating does not increase the operator capacity.
Applications include villa entrances, apartment access, commercial properties, warehouses and replacement work on existing sliding gate systems, subject to compatibility and the relevant load limits.
Section Quantity and Installation
Measure the required driven travel and the operator installation allowance to determine the number of 1 m sections. Do not assume that the clear opening alone provides the complete rack quantity. Check the planned end positions and engagement at both limits.
Position and secure each section using the correct fixing method. The CP rack has adjustable slotted screw mounting for alignment. Check full travel, section joints and limit operation before commissioning.
Replacement and Maintenance
Compare the old rack dimensions and tooth profile before replacement. Inspect the motor pinion and adjacent rack sections for wear so that a new section is not installed against damaged mating parts. After adjustment, test several complete cycles and check that engagement remains consistent.
Keep the gate track and rack area clear of debris, inspect fixings periodically and follow the operator manufacturer’s maintenance instructions. If abnormal noise or uneven movement develops, investigate alignment and mechanical wear before increasing drive force.
Package and Ordering Information
The listing is for one 1 m rack section. Confirm mounting hardware and quantity requirements in your quotation. The sliding gate motor, additional rack sections and installation service are supplied separately unless expressly included.
Supply and Installation Support in the UAE
BFT Automation UAE can assist with product selection and enquiries for Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Send the existing equipment model and installation details so compatibility and any additional parts can be checked.
Request a quotation for delivery, fitting, wiring and commissioning as applicable. Service scope, availability and warranty terms should be confirmed for your order; accessory supply alone does not automatically include installation.
Frequently Asked Questions
How long is one rack section?
1000 mm, equivalent to 1 metre.
Which gear module does it use?
Module 4.
Can several sections be used on one gate?
Yes. Match and align the sections to cover the required driven travel.
What gate weight is supported?
The CP nylon rack is listed for gates up to 600 kg, subject to compatible installation and operator limits.
Will it fit every BFT sliding motor?
Compatibility depends on the exact pinion profile, rack dimensions, mounting and installation requirements.
