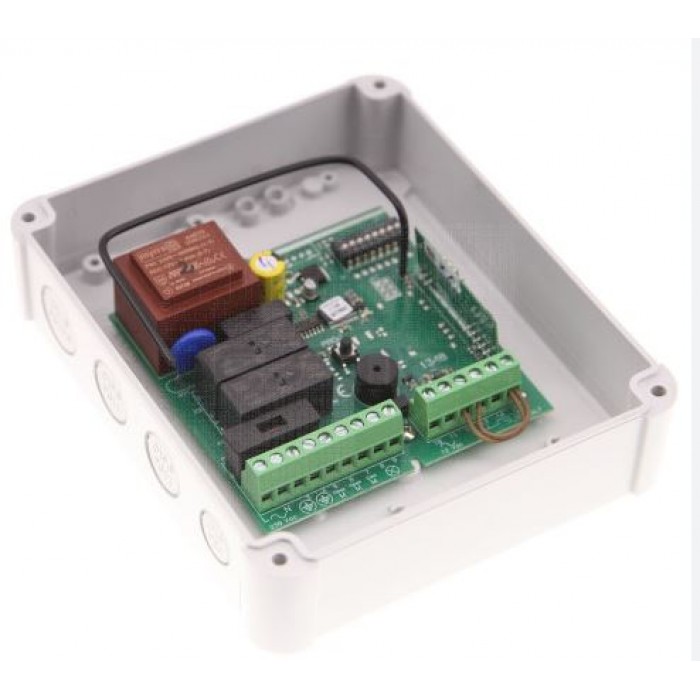

BFT LUNA AC B Control Board UAE
230V Roller Shutter Control Board with Integrated BFT Radio Receiver
BFT LUNA AC B Control Board UAE is a 230V control panel designed for compatible roller shutter and garage shutter motors. Unlike the gate-motor boards in this category, LUNA AC B is intended specifically for shutter automation.
The panel supports compatible 230V shutter motors with published maximum motor power up to 1200W. It provides an output for a flashing light and inputs for photocells and safety edges.
Programming is carried out through DIP switches and trimmers. An integrated 433 MHz receiver supports compatible BFT MITTO remote controls for wireless shutter operation.
The enclosure uses the BFT logo as an external programming button that actuates the internal PROG control. Published dimensions are approximately 154 x 130 mm. Motor type and power should be confirmed before replacement.
BFT LUNA AC B Features
- Control panel for compatible roller shutter motors
- 230V operation
- Up to 1200W motor power
- Flashing-light output
- Photocell input
- Safety-edge input
- DIP-switch and trimmer programming
- Integrated 433 MHz radio receiver
- Compatible with BFT MITTO remote controls
- External BFT-logo programming button
BFT LUNA AC B Technical Specifications
- Model: LUNA AC B
- Application: Roller / Garage Shutter Control Panel
- Power Supply: 230V
- Maximum Motor Power: 1200W
- Programming: DIP Switches and Trimmers
- Integrated Radio Receiver: 433 MHz
- Compatible Transmitters: Compatible BFT MITTO Remotes
- Flashing Light Output: Yes
- Photocell Input: Yes
- Safety Edge Input: Yes
- Dimensions: Approx. 154 x 130 mm
Compatible Systems
- Compatible 230V roller shutter motors up to the specified power limit
- BFT MITTO remote controls through the integrated compatible receiver
Applications
- Automatic rolling shutters
- Garage shutters
- Commercial roller doors
- Shutter control-board replacement
- Remote-controlled shutter automation
Why Choose BFT LUNA AC B?
LUNA AC B combines shutter motor control, safety inputs and radio reception in one dedicated panel.
Its 1200W published motor capacity covers many compatible 230V shutter applications.
The integrated BFT radio receiver allows compatible MITTO transmitters to be used without a separate standard receiver.
Frequently Asked Questions
Is LUNA AC B a swing or sliding gate board?
No. It is designed for compatible roller shutter and garage shutter motors.
What is the maximum motor power?
Published information specifies up to 1200W.
Does it include a radio receiver?
Yes, an integrated 433 MHz receiver is specified.
Which remotes can be used?
Compatible BFT MITTO transmitters can be used with the integrated receiver.
Does it support photocells and safety edges?
Yes, inputs are provided for these safety devices.
