ABCD Universal Gate Remote Control UAE
ABCD Universal Gate Remote Control – Product Introduction

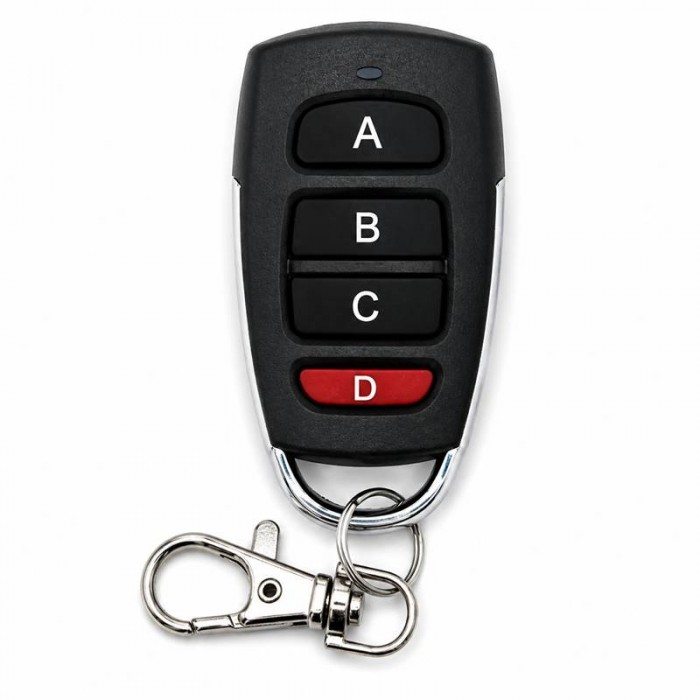

The ABCD Universal Remote Control is a compact four-button wireless transmitter for compatible automatic gates, parking barriers, garage doors, rolling doors and shutters. Its clearly marked A, B, C and D buttons provide convenient access to the commands supported by a matched receiver. The small handheld design is suitable for everyday use at villas, residential compounds, offices and commercial premises in the UAE.
Operating at 433 MHz, this remote is specified with a rated voltage of 6 V and a rated current of 4.3 mA. It measures 48 × 38 × 13 mm and weighs approximately 31 g. The stated transmission distance is up to approximately 50 metres, depending on the receiver and installation conditions.
This is a generic ABCD remote, not a BFT-branded transmitter. “Universal” does not mean that it works with every gate motor or radio receiver. Receiver frequency and coding compatibility must be confirmed before purchase or programming.
Key Features
- Four clearly identified A/B/C/D buttons for straightforward operation.
- 433 MHz radio transmission for use with compatible access-control receivers.
- Compact 48 × 38 × 13 mm housing for convenient carrying.
- Lightweight design with an approximate weight of 31 g.
- Stated operating range of up to approximately 50 m under suitable conditions.
- Suitable for compatible automatic gates, parking barriers, garage doors, rolling doors and shutters.
- A practical replacement or additional transmitter where the existing receiver supports this remote.
Technical Specifications
- Product: ABCD Universal Remote Control
- Type: Handheld wireless access-control transmitter
- Buttons: 4, labelled A, B, C and D
- Operating frequency: 433 MHz
- Rated voltage: 6 V
- Rated current: 4.3 mA
- Transmission distance: Up to approximately 50 m; actual range depends on site conditions
- Dimensions: 48 × 38 × 13 mm
- Weight: Approximately 31 g
- Applications: Compatible gates, barriers, garage doors, rolling doors and shutters
- Compatibility: Subject to receiver frequency, coding and programming support
- Battery model: Not specified; confirm the correct battery type and arrangement for the supplied unit
Buttons and Everyday Operation
The four buttons allow the remote to send the commands recognised by a compatible receiver. Their assigned functions depend on the receiver configuration and the connected automation system. A button may operate a supported access point or function after it has been correctly enrolled. Four buttons should not be taken as a guarantee that four unrelated systems can be controlled: each receiver must support the transmitter and its coding.
Receiver Compatibility
Before ordering, identify the existing receiver or control board and compare the original remote. Matching the 433 MHz frequency is only one requirement; the radio coding and receiver programming method must also be compatible. This listing does not promise universal cloning or compatibility with BFT rolling-code receivers.
Useful information for a compatibility check includes the motor brand and model, the radio receiver model, and clear photographs of the current remote and its markings. A compatible external receiver may be needed for some installations, but any additional equipment should be confirmed separately before purchase.
Wireless Range and Installation Conditions
The stated operating distance is up to approximately 50 metres. Actual performance varies with walls, metal gates, receiver antenna position, nearby radio interference and battery condition. Test operation at the intended approach point after programming. A weak battery or an obstructed antenna can reduce usable range even when the transmitter and receiver are correctly matched.
Power Supply and Battery Selection
The specified rated voltage is 6 V and rated current is 4.3 mA. The battery model and arrangement are not identified in the supplied product information. Check the markings inside the actual remote or confirm the battery requirements before fitting replacements. Use the specified battery type, observe polarity and keep the battery contacts clean. Battery inclusion should be confirmed when ordering.
Programming and Replacement
Programming depends on the receiver installed at the property. Follow the receiver manufacturer’s enrolment procedure or have a qualified gate technician configure the transmitter. There is no single programming sequence that can safely be assumed to work with every compatible installation.
After enrolment, test each assigned button and confirm that the intended gate, barrier or door responds correctly. For shared parking areas or managed buildings, programming may need to be arranged through the authorised property administrator or installer. When replacing a lost remote, ask the system administrator about removing its access from the receiver where that function is supported.
Suitable Applications
- Villa and residential gate access with a compatible receiver.
- Residential compound entrances and parking barriers.
- Office and commercial parking access systems.
- Compatible garage-door automation.
- Compatible rolling doors and shutters.
- Additional or replacement remote access for authorised users.
Package and Ordering Information
This product listing is for the ABCD handheld transmitter. Confirm the supplied battery, accessories and any programming service when requesting a quotation. A gate motor, receiver or control board is not automatically included with the remote. For multiple units, contact us to confirm quantity pricing and compatibility before ordering.
ABCD Remote Control Supply in the UAE
Contact BFT Automation UAE for product enquiries and compatibility or programming support in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Share the receiver model and existing remote details so that the correct replacement can be checked. Availability, delivery and installation arrangements can be confirmed with your enquiry.
Frequently Asked Questions
How many buttons does the ABCD remote have?
It has four buttons labelled A, B, C and D. The functions available depend on the compatible receiver and its configuration.
Will it work with every 433 MHz gate motor?
No. Frequency alone does not establish compatibility. The receiver must also support the transmitter coding and programming method.
What is the operating range?
The stated range is up to approximately 50 metres. Walls, metal structures, antenna placement, interference and battery condition can reduce actual range.
Can I use it to replace an existing remote?
Yes, if the installed receiver supports this transmitter. Check the receiver and existing remote details before ordering.
Is this an original BFT remote?
No. This is a generic ABCD remote. Do not assume compatibility with BFT rolling-code systems without checking the installed receiver.
Does the remote need programming?
It must be correctly configured or enrolled for the supported receiver. The procedure depends on the installation.
Can I order several remotes?
Yes, contact us with the required quantity and receiver details to request a quotation and confirm suitability.
